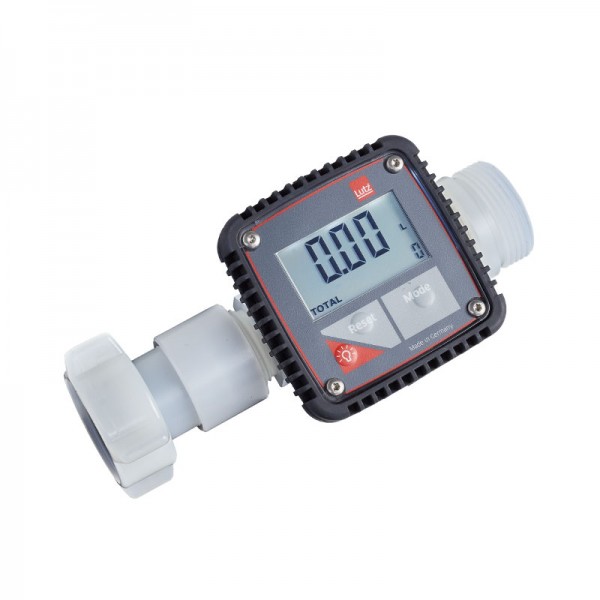

TR3 Flow meter (PVDF)
for highly aggressive liquids
- Order number: 0213-060
- Maße (mm): upon request
- Info: not suitable for flammable liquids
for mounting on Drum pump (1 1/4")
Description:
Easy to operate, compactly built and quick to mount on all Drum- and container pumps: the Lutz Flow Meter TR3 in PP or PVDF. A handy meter that you can "count on" in any situation. The symmetrical measuring chamber allows it to be used for all flow directions and measures thin-bodied, non-flammable media precisely, quickly and, above all, efficiently.
- PVDF for highly aggressive liquids
- Media examples: Chlorine bleach solution, nitric acid, sulfuric acid, ...
- Two 1.5 V batteries (AAA) interchangeable
Features & Advantages
- Measurement according to the turbine wheel principle
- Display of partial and total quantity
- Variable display orientation
- Mobile on a Drum pump or with nozzle connection
- Measuring range from 5 l/min - 120 l/min
- Easy battery change
| Suitable media: | Chlorbleichlauge, Schwefelsäure, Salpetersäure |
| Housing (material): | POM (Polyoxymethylene) |
| Seals (material): | PTFE (polyvinylidene fluoride) |
| Measuring chamber (material): | PVDF (Polyvinylidenfluorid) |
| Axis (material): | Hastelloy C-22 |
| Flow rates (up to l/min): | 120 |
| Fluid temperature (max °C): | 50 |
| Operating pressure (max. bar): | from 8 bar |
| Viscosity (up to mPas): | 40 |
| Messprinzip: | Turbinenrad |
| Connection: | Gewinde |
| External connection thread (inch): | 1 1/4" |
| Messgenauigkeit kalibriert**: | ± 1% |
| Wiederholgenauigkeit (%): | ± 0,5 |
| Connection: | Gewinde |
| Protection type: | IP65 |
| Version: | Mounting on drum pump |
| Type: | TR3-PVDF |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil. ** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
