Lutz Pumpwerk PVDF für Pumpenset B2 Battery, B2 Vario

Preview: Battery Pump Set - B2 Battery PVDF

Preview: Lutz Pumpwerk PVDF für Pumpenset B2 Battery, B2 Vario

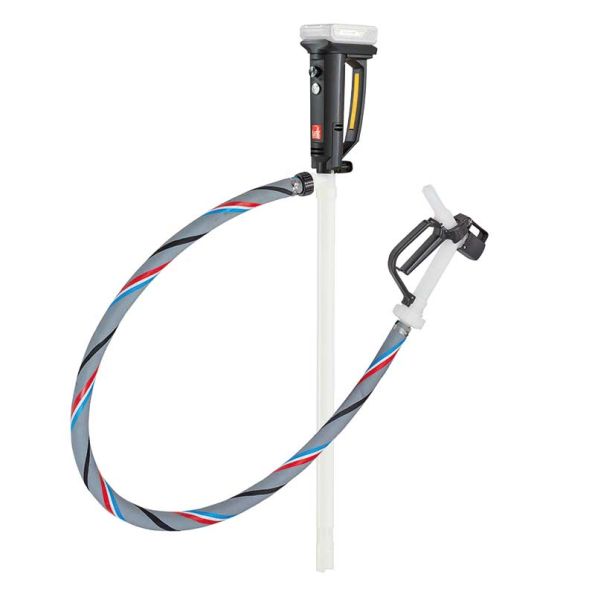

Battery Pump Set - B2 Battery PVDF

for concentrated acids and alkalis

Order number: 0207-080
Maße (mm): upon request
Info: not suitable for flammable liquids

Description: The Pump Set B2 Battery is suitable for low viscosity, aqueous to slightly...more

Close menu

Product information "Battery Pump Set - B2 Battery PVDF"

Immersion depth: 500 mm (sealless)
Note: The pump set is supplied without battery and charger.

Immersion depth: 500 mm (sealless)
Suitable for removal from small containers such as canisters or
hobbocks

Description:

The Pump Set B2 Battery is suitable for low viscosity, aqueous to slightly viscous media. The set is suitable for the removal of small pads such as Canister or hobbocks. The pump is flexible at all times and thus saves important resources.

Exchangeable, powerful battery with Li-Ions
Battery life 35 min at maximum speed
1 battery charge empties approx. 12 x 200 litre containers

Features & Advantages

BLDC Motor with high efficiency up to 70%
infinitely variable
high battery life
automatic shutdown in case of overload
sophisticated quick release

Technische Produktdaten

Suitable media:

Natriumhypochlorit, Chromsäure, Flusssäure, Chlorsäure, Salpetersäure, Schwefelsäure

Pump station material (material):

PVDF (polyvinylidene fluoride)

Impeller (material):

ETFE (ethylene-tetrafluorethylene copolymer)

Static seal (material):

no seals in contact with the medium

Mechanical seal (material):

no seals in contact with the medium

Bearing (material):

ETFE / PTFE

Drive shaft (material):

Hastelloy C (2.4610)

Delivery rate (up to max. l/min)*:

Delivery rate with Nozzle (up to max. l/min)*:

Delivery head (up to max. mWS)*:

Fluid temperature (max °C):

density (up to kg/dm³):

1.6

Viscosity (up to mPas):

400

Conveyor wheel shape / drive type:

Axial-flow rotor

Seal type:

Sealless (SL)

Immersion length (mm):

up to 500 mm

Immersion tube diameter (up to mm):

Thread (inch) outside:

Schlauchlänge (mm):

1500

Type of drive:

Battery

Output (W):

260

Voltage (V):

21,6

Capacity (Ah):

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
