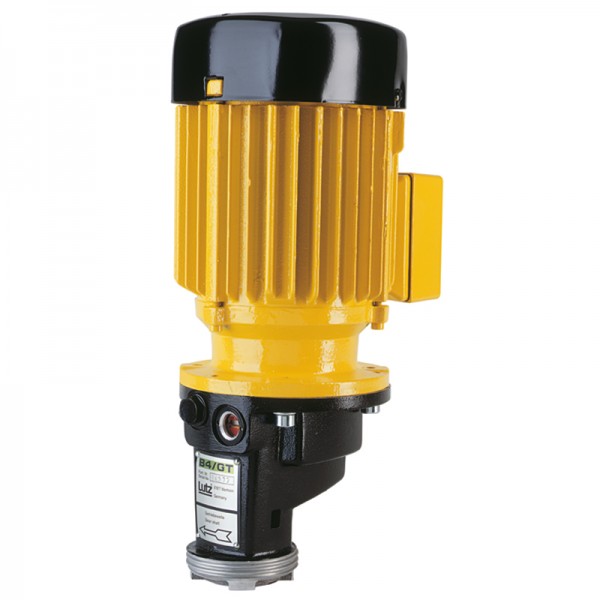

Three-phase geared motor B4/GT
for high runtimes
- Order number: 0004-052
- Maße (mm): upon request
- Info: not suitable for flammable liquids
Version: with circuit breaker
Reliable and durable three-phase geared motor for pumping low-viscosity to slightly viscous media in plant construction and stationary use.
- Robust and durable
- Especially smooth and quiet running
- Maintenance-friendly
- 230/400V, 50 Hz, 750W, protection class IP 54 Energy efficiency class IE 3 according to EU regulations 640/2009 and 04/2014
- Special designs (voltage, frequency, protection class, etc.) possible
The B4/GT has proven itself in plant construction as well as as a drum pump drive. The perfect system for thin-bodied to lightly viscous media. Wear and tear hardly ever occurs with these undemanding employees. The ideal solution for long running times.
Absolutely undemanding
The flange-mounted single-stage gear is oil lubricated and extremely easy to maintain.
| Type of drive: | Three phase |
| Output (W): | 750 |
| Voltage (V): | 400 |
| Frequency (Hz): | 50 |
| Protection type: | IP54 |
| Version: | Schutzschalter |
| Type: | B4/GT |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil. ** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
