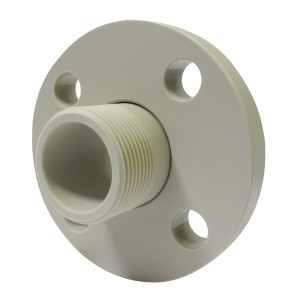

Threaded flange
for the Double diaphragm pump 2"
- Order number: 5000-262
- Maße (mm): op verzoek
Material: PP
Connection type: DN 50 x 2" AG
Type aansluiting: DN 25 x G 1 1/4 AG
Description:
The threaded flange is used to connect individual components to the Double diaphragm pump. The flange includes the necessary screws and gaskets.
- special connections are available on request
Properties & Advantages
- Materials: PP / PVDF / Alu / Stainless steel (1.4571)
- Connection: DN 50 on 2" AG
| Produktgruppe: | Membranpumpen |
| Accessories group: | Connections |
* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil. ** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
