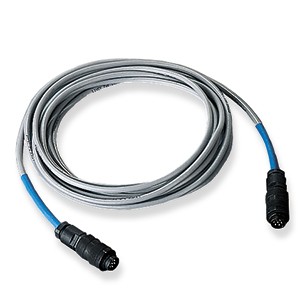

Data line Pulse connection

Order number: 5000-349
Maße (mm): upon request
Info: Suitable for pumping flammable and combustible liquids (e.g. ethanol, petrol) or in potentially explosive atmospheres.

Description: The data lead pulse connector connects the electronic pulse connector to the...more

Product information "Data line Pulse connection"

Description:

The data lead pulse connector connects the electronic pulse connector to the appropriate control unit or pulse converter

Data cable 7-pole to 14-pole

Technische Produktdaten

Certification:

ATEX Richtlinie (ATEX Richtlinie 2014/34/EU)

Produktgruppe:

Membranpumpen

Accessories group:

Cable / Plugs / Sockets / Switch

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
