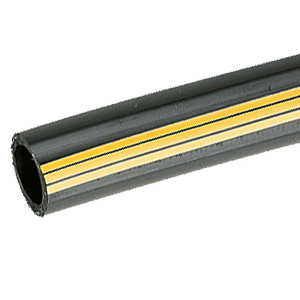

Mineral oil hose

for oils such as diesel, machine oils and heating oils

Order number: 0374-462
Maße (mm): op verzoek
Info: suitable for flammable and easily combustible liquids (e.g. ethanol, petrol) or in explosive environments

Description: The Hose is suitable for petroleum products of all types and super up to 50%...more

Product information "Mineral oil hose"

Nominal size: DN 25 (1")
Materials: Inner rubber NBR and outer rubber NBR
Note: Electrically conductive: Type Ω-CL (<106 Ohm between fittings) according to TRbF 50 Appendix B (TRbF 131/2).

Nominale diameter DN 19 (3/4")

Description:

The Hose is suitable for petroleum products of all types and super up to 50% aromatics and methanol content. The inner rubber consists of the material NBR and the outer rubber of either CR (Chloroprene) or NBR. The Hose is electrically conductive so that it can also be used in explosive environments.

Nominal size: DN 13 / DN 19 / DN 25 / DN 32 / DN 38 / DN 50

Features & advantages

Operating pressure up to max. 16 bar
Colour coding: "Yellow

Technische Produktdaten

Fluid temperature (max °C):

65 , 90

Explosion protection:

Yes

Certification:

ATEX Richtlinie (ATEX Richtlinie 2014/34/EU)

Produktgruppe:

Fasspumpen / Containerpumpen, Exzenterschneckenpumpen, Membranpumpen

Accessories group:

Hoses / Discharge spouts / Suction pipe

* The maximum flow rate is a value determined by means of a test bench and measured with water at a medium temperature of approx. 20 °C. The measurement is carried out at the pressure joint of the pump, without hose, nozzle or flow meter. The achievable flow rate in use is lower and depends on the individual application, the liquid properties and the configuration of the pump. The max. delivery head also depends on the pump design, motor and fluid. The viscosity values are determined with oil.

** Test assembly: Medium water / diesel, flow in preferred direction, settling section 0.2 m upstream and downstream of flow meter
